Sky-Tec Starters E-Drive Series
Sky-Tec Starters
Lycoming Starters
(For Continental starter information, click here)
E-Drive
- Highest duty cycle Lycoming starter available
- In-line design replaces most Bendix-drive legacy starters
- Kickback Protection System (KPS)- self-resetting

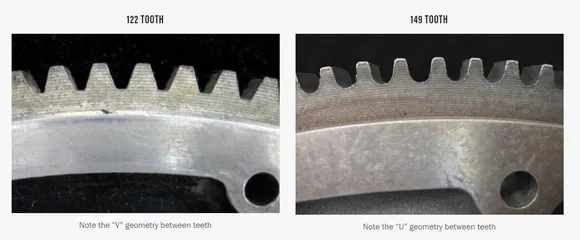

Note: Confirm teeth ring gear before making a selection. Note the "V" geometry between 122 tooth ring gear, and the "U geometry between 149 tooth ring gear. Always confirm and order the correct starter to match.
Click here for the Sky-Tec Fit Guide.
|
Part Number
|
Condition
|
Series
|
Voltage
|
Rotation
|
Solenoid Position
|
Weight (lbs)
|
Tooth Count
|
Kickback Protection
|
Notes
|
| ELZ-8021 |
New
|
E-Drive
|
12
|
LH
|
Internal
|
9.5
|
149
|
KPS-Clutch
|
Counter rotating. Replaces Prestolite MZ-4220(R), PM Series PM1204, Lycoming 31A26901 |
| ERZ-8011 |
New
|
E-Drive
|
12
|
RH
|
Internal
|
9.5
|
149
|
KPS-Clutch
|
Replaces Prestolite MZ-4222(R), MZ-4224(R), PM Series PM2401(R), Lycoming 31A26041 |
| ERZ-8012 |
New
|
E-Drive
|
12
|
RH
|
Internal
|
9.5
|
122
|
KPS-Clutch
|
Replaces PM Series PM2403, Lycoming 31A26043 |
| ELB-8011 |
New
|
E-Drive
|
24
|
LH
|
Internal
|
9.5
|
149
|
KPS-Clutch
|
Counter rotating. Replaces Prestolite MHB-4014(R), PM Series PM2404, Lycoming 31B26900 |
| ERB-8011 |
New
|
E-Drive
|
24
|
RH
|
Internal
|
9.5
|
149
|
KPS-Clutch
|
Replaces Prestolite MHB-4014(R), PM Series PM2404, Lycoming 31B26040 |
| ERB-8012 |
New
|
E-Drive
|
24
|
RH
|
Internal
|
9.5
|
122
|
KPS-Clutch
|
Replaces Prestolite MX-4204(R), PM Series PM2403, Lycoming 31B26042 |
| 122-12HT |
New
|
HT Series
|
12
|
RH
|
LH
|
8.9
|
122
|
KPS-Clutch
|
Replaces Lycoming 31A22112 |
| 122-24HT |
New
|
HT Series
|
12
|
RH
|
LH
|
8.9
|
122
|
KPS-Clutch
|
Replaces Lycoming 31B22113 |
| 149-12HT |
New
|
HT Series
|
12
|
RH
|
LH
|
8.9
|
149
|
KPS-Clutch
|
Replaces Lycoming 31A22110 |
| 149-12HT-H |
New
|
HT Series
|
12
|
RH
|
LH
|
8.9
|
149
|
KPS-Clutch
|
Counter Rotating. Replaces Lycoming 31A22114 |
| 149-12HTL |
New
|
HT Series
|
12
|
LH
|
LH
|
8.9
|
149
|
KPS-Clutch
|
Replaces Lycoming 31A22104 |
| 122-HT/EC |
New
|
HT Series
|
24
|
RH
|
LH
|
8.9
|
122
|
KPS-Clutch
|
Replaces Lycoming 31B22117 |
| 149-24HT |
New
|
HT Series
|
24
|
RH
|
LH
|
8.9
|
149
|
KPS-Clutch
|
Replaces Lycoming 31B22111 |
| 149-24HT-H |
New
|
HT Series
|
24
|
RH
|
LH
|
8.9
|
149
|
KPS-Clutch
|
|
| 149-24HTL |
New
|
HT Series
|
24
|
LH
|
LH
|
8.9
|
149
|
KPS-Clutch
|
Counter Rotating. Replaces Lycoming 31A22115 |
| 149-HT/EC |
New
|
HT Series
|
24
|
RH
|
LH
|
8.9
|
149
|
KPS-Clutch
|
Replaces Lycoming 31B22116 |
| 122NL |
New
|
NL Series
|
12
|
RH
|
Internal
|
9.3
|
122
|
KPS- Shear Pin
|
Replaces Prestolite MZ-4204(R), PM Series PM2403, Lycoming 31B23590 |
| 122-NL/EC |
New
|
NL Series
|
12
|
RH
|
Internal
|
9.3
|
122
|
KPS- Shear Pin
|
Replaces Prestolite MZ-4204(R), PM Series PM2403, Lycoming 31B26042, 31B26552 |
| 149NL |
New
|
NL Series
|
12
|
RH
|
Internal
|
9.3
|
149
|
KPS- Shear Pin
|
Replaces Prestolite MZ-4222(R), MZ-4224(R), PM Series PM1201(R), Lycoming 31A26041, 31B23592 |
| 149NL/EC |
New
|
NL Series
|
24
|
RH
|
Intnernal
|
9.3
|
149
|
KPS- Shear Pin
|
Replaces Prestolite MHB-4014(R), MHB-4016(R), MHB-4018(R), PM Series PM2401(R), Lycoming 31B26040, 31B26554 |
| 149NLR |
New
|
NL Series
|
12
|
LH
|
Internal
|
9.3
|
149
|
KPS- Shear Pin
|
Counter Rotating. Replaces Prestolite MHB-4014(R), PM Series PM2404, Lycoming 31B26900, 31B23593 |
| 149NLR/EC |
New
|
NL Series
|
24
|
LH
|
Internal
|
9.3
|
149
|
KPS- Shear Pin
|
Counter Rotating. Replaces Prestolite MHB-4014(R), PM Series PM2404, Lycoming 31B26900, 31B26555 |
| 122-12LS |
New
|
PM/LS Series
|
12
|
RH
|
|
8.25
|
122
|
Replaces Lycoming 31A22106 | |
| 122-12PM |
New
|
PM/LS Series
|
12
|
RH
|
RH
|
8.9
|
122
|
Replaces Lycoming 31A22102 | |
| 149-12LS |
New
|
PM/LS Series
|
12
|
RH
|
LH
|
8.25
|
149
|
||
| 149-12PM |
New
|
PM/LS Series
|
12
|
RH
|
RH
|
8.25
|
149
|
Replaces Lycoming 31A22100 |
|
| 122-24PM |
New
|
PM/LS Series
|
24
|
RH
|
RH
|
8.25
|
122
|
Replaces Lycoming 31B22103 |
|
| 149-24LS |
New
|
PM/LS Series
|
24
|
RH
|
LH
|
8.25
|
149
|
Replaces Lycoming 31B22105 |
|
| 149-24PM |
New
|
PM/LS Series
|
24
|
RH
|
RH
|
8.25
|
149
|
Replaces Lycoming 31B22101 | |
| 122-12XLT |
New
|
XLT Series
|
12
|
RH
|
LH
|
6.5
|
122
|
||
| 149-12XLT |
New
|
XLT Series
|
12
|
RH
|
LH
|
6.5
|
149
|
||
| 122-24XLT |
New
|
XLT Series
|
24
|
RH
|
LH
|
6.5
|
122
|
||
| 149-24XLT |
New
|
XLT Series
|
24
|
RH
|
LH
|
6.5
|
149
|
||
| 12RX |
New
|
Rotax
|
12
|
|
|
|
|
Rotax |
For Performance Issue test procedures, click here.
Note: A *refundable core charge is included in the price of all Sky-Tec Starters
*When a qualified core is returned within 30 days of the original invoice date.
Warranty Policy: All starters except E-Drive, X-Drive, PM1207, and PM2401 can be accepted for warranty consideration up to 24 months/1000 hours. E-Drive, X-Drive, PM2407, PL13459, and PL13484 can be accepted for warranty consideration up to 36 months/1000 hours.
