Replacement Components for Cessna Nose and Main Strut Applications

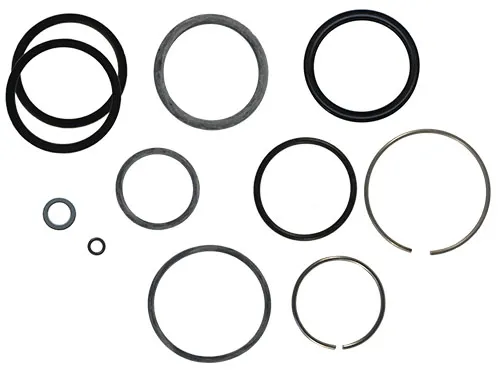

Cessna Nose Strut Seal Kits

FAA-PMA for many Cessna 150 thru 337 aircraft
Solves the continuous leak and re-service problems with the Cessna nose strut

  • Double edge (“X” style) seal that will not twist and leak!
  • Go years without servicing!
  • Includes all o-rings, back-up rings, scraper, and AN901-5A gasket
  • Lock rings now made of 304 Stainless Steel for better corrosion resistance
  • Click here to view Nost Strut Seal Kit diagram

Note: During P/N 1100 installation, we recommend installing the flat side of the back-up ring against the quad ring

MCSK172-2 BLUEPRINT

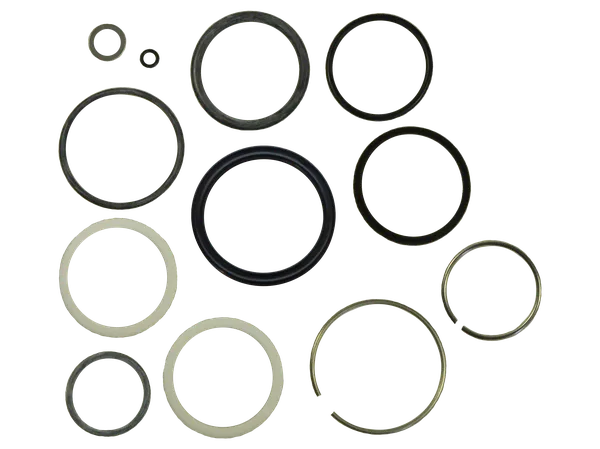

Kit Components MCSK172-1F MCSK172-2

QUAD RING, Nose Strut Seal

1100

1100

GASKET

AN901-5A

AN901-5A

LOCK RING, Nose Strut

MC0841200-19

MC0841200-19

LOCK RING, Nose Strut

MC0841200-25

MC0841200-25

RING, Backup, Nose Strut

MCS1628-329

MS28782-32

RING, Backup, Nose Strut

MCS2418-1

MCS2418-1

O-RING

MS28775-010

MS28775-010

O-RING

MS28775-221

MS28775-221

O-RING

MS28775-225

MS28775-225

O-RING

MS28775-228

MS28775-228


Shock Strut Bearing

  • FAA-PMA approved for Cessna aircraft
    Save $$$
  • In stock and ready to ship!

Use with Ring, Pack Support P/N MCAJB-32T-4

Nose Strut Bearing (mc1243021-1--web.jpg)


Ring Pack Support

FAA-PMA approved for Cessna aircraft

  • Stainless steel for corrosion resistance
  • PFTE composite-lined for smoother strut action
  • Liner holds oil for longer life
  • Easy on your chrome strut

Use with Shock Strut Bearing P/N MC1243021-1

MCAJB-32T-4 (mcajb-32t-4--mas.jpg)


Why Does My Cessna Nose Strut Keep Leaking Down?

By Dave McFarlane

Cessna Nose strut “leak down” has plagued Cessna owners for the last 65 years. Why is it that a month after you reseal the nose strut you find the strut down again or just low and showing signs of a little MIL-5606 on the pretty chrome? It always happens on Sunday when no one is around to help you service it. You service it up the next week only to have it do it again next month. After several strut reseals most people just resign to servicing it often and consider it part of owning a Cessna. Piper and Beech struts do not leak down or need to be resealed often and they are high pressure! With a strong belief that everything that goes wrong on an airplane has a reason that can be explained by physics, we did some research.

It was observed that the low time leaking O-ring that was removed always showed signs of being slightly twisted and otherwise like new. Further experiments and close evaluations proved that the O-ring would twist from friction caused by an oxidized hydraulic fluid film on the chrome strut.You probably have noticed how MIL-5606 hydraulic fluid tends to dry and get sticky after it is exposed to air. Add a little runway dust to the back side of the strut and it really gets sticky. The low operating pressures of the Cessna strut does not put a lot of holding pressure to stabilize the sealing O-ring. It was observed that the sticky film on the chrome strut can grab and adhere to the O-ring during a normal strut action cycle. If the sticky film is not evenly dispersed on the strut, the O-ring is rolled a little on the filmy side only. This uneven rolling action puts a slight twist in the O-ring.

This slight twist can break the normal seal between the strut and the O-ring allowing a slow unpredictable leak. It seemed logical that if you lowered the friction on the O-ring surface you could eliminate the problem. A hunt was on for a low friction O-ring that would resist being rolled and would have good durability. After many experiments with Teflon® coated and other specialty O-rings only partial success was achieved. They either were not as durable or the sealing characteristics were not as good as the standard rubber O-ring. A break finally came at Airventure Oshkosh when Tony Brand of Horsham Aviation Services located in Horsham, Victoria, Australia came by and explained how they solved the problem. They had observed the same twisting of the strut O-ring and went on to explain how they replaced the round O-ring with a square (“X” style) O-ring that can not rotate.

The standard backup rings were simply reversed to match the square sides of the new style O-ring. The “X” O-rings have the same material as the standard ones. Brilliant! Why didn’t we think of that!? We rushed home and changed all the O-ring seals in five of the airplanes on the field. One of them was our 152 trainer that takes a lot of abuse. We were going to find out if those innovative Aussies knew what they were talking about. Sure enough, that was almost five years ago and we have never had to service the nose strut (not even with air) on any of the aircraft with the square O-rings! My hat goes off to the boys from Down Under for saving the industry thousands of man hours every year and making the Cessna fleet more reliable! Thank you! Our FAA-PMA seal kit, P/N MCSK172-1F now includes the square (“X” style) O-ring and instructions for reversing the back up rings.


Maintenance Tip:

Wipe the chrome strut down with Stoddard solvent (mineral spirits) periodically to soften and remove any dried oil film, dirt, dust, and bugs.
