Direct replacement for the Scott 3200 tailwheel assembly
Offering better floatation and control in off-airport maneuvers. These assemblies provide extended steering control, easy automatic swivel release, and sealed protection against water, sand, and mud. The complete assemblies include precision components and grease fittings for lubrication, ensuring reliable performance in challenging conditions.
Key features:
Technical specs:
Applicable Tailwheel Shimmy Dampener:
P/N ABI-3200B (T) KEG-116
P/N ABI-3200B (T) KEG-117
P/N ABI-3200-3B KEG-118
Diagram # | Part Number | Description |
---|---|---|
1 |
Tailwheel Head |
|
2 |
2 Bolt Tailwheel Head |
|
3 |
Spacer |
|
4 |
Leaf Spring Adapter 1 1/2" |
|
5 |
Leaf Spring Adapter 1 1/4" |
|
6 |
Fiber Thrust Washer |
|
7 |
Thrust Plate Assembly |
|
8 |
Dust Cap, Upper |
|
9 |
Dust Cap, Upper |
|
10 |
Thrust Washer |
|
11 |
Long Pawl |
|
12 |
Short Pawl |
|
13 |
Straight Steering Arm Assembly |
|
14 |
Bent Steering Arm Assembly |
|
15 |
Compression Spring |
|
16 |
Dust Cap, Lower |
|
17 |
Dust Cap, Lower |
|
18 |
Bushing |
|
19 |
Pin |
|
20 |
Dowel Pin |
|
21 |
Spacer |
|
22 |
Compression Spring |
|
23 |
Spacer |
|
24 |
Wide Tailwheel Fork |
|
25 |
Bearing Cup |
|
26 |
Cone Bearing |
|
27 |
Spacer |
|
28 |
Bearing Grease Seal |
|
29 |
Washer |
|
30 |
Shear Nut |
|
31 |
COTTER PIN, 3/32" X 3/4" |
|
32 |
Zerk Fitting |
|
33 |
Axle Bolt - Wide Fork |
|
34 |
Tab Lock Washer |
|
35 |
NUT (Nylon Lock) |
|
36 |
WASHER, 1/4, Steel, .063 |
|
37 |
Spacer |
|
38 |
Wheel Half |
|
39 |
ABI-51167 |
Baby Bushwheel Grease Seal |
40 |
Rim Spacer (ABI-3200-B Tailwheels) |
|
41 |
Bolt, AN |
|
42 |
NUT |
|
43 |

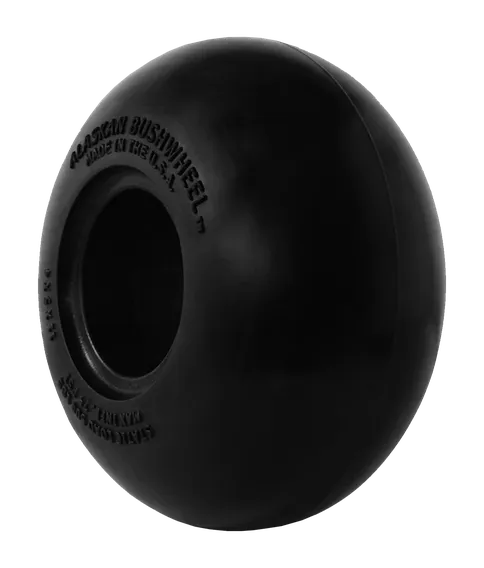

Baby Bushwheel Tailwheel Tire |
Warranty Policy: Warranty protection, when offered, will vary between manufacturers and products lines. Please contact customer support for any warranty claims.
The ABI 3400 Baby Bushwheel Tailwheel Assembly is a direct replacement for the Scott 3400 tailwheel assembly, providing enhanced flotation and control for off-airport maneuvers. It offers extended steering control, easy automatic swivel release, and sealed protection against water, sand, and mud. With precision components and grease fittings for lubrication, it ensures reliable performance in challenging conditions.
Key Features:
Technical Specs:
Applicable Tailwheel Shimmy Dampener:
ABI-3400B (S) KEG-112
ABI-3400B (T) KEG-111
Diagram # | Part Number | Description |
---|---|---|
1 |
Tailwheel Head |
|
2 |
1" Head Spacer |
|
3 |
15/16" Head Spacer |
|
4 |
7/8" Head Spacer |
|
5 |
BEARING CUP, CL 2 CODE 629, FAA-PMA |
|
6 |
BEARING CONE, CL 2 CODE 629, FAA-PMA |
|
7 |
Compression Spring |
|
8 |
Dust Cap, Upper |
|
9 |
Dust Cap, Upper (locking tailwheels) |
|
10 |
Thrust Washer |
|
11 |
.036 Fiber Thrust Washer |
|
12 |
Long Pawl |
|
13 |
Short Pawl |
|
14 |
Straight Steering Arm |
|
15 |
Steering Arm - Bent |
|
16 |
Spacer |
|
17 |
.065 Fiber Thrust Washer |
|
18 |
Fiber Thrust Washer (locking tailwheels) |
|
19 |
Dust Cap, Lower |
|
20 |
Dust Cap, Lower (locking tailwheels) |
|
21 |
Dowel Pin |
|
22 |
3400 Plate Screw |
|
23 |
ABI-SP34 |
Spacer Plate |
24 |
Pin |
|
25 |
Spacer |
|
26 |
Compression Spring |
|
27 |
Spacer |
|
28 |
Spacer Plate |
|
29 |
BEARING CUP, CL 2 CODE 629, FA |
|
30 |
Cone Bearing |
|
31 |
Spacer |
|
32 |
Bearing Grease Seal |
|
33 |
Washer |
|
34 |
Shear Nut |
|
35 |
COTTER PIN, 3/32" X 3/4" |
|
36 |
Zerk Fitting |
|
37 |
Axle Bolt - Wide Fork |
|
38 |
Tab Lock Washer |
|
39 |
NUT (Nylon Lock) |
|
40 |
WASHER, 1/4, Steel, .063 |
|
41 |
Spacer |
|
42 |
Wheel Half |
|
43 |
ABI-51167 |
Grease Seal |
44 |
Rim Spacer (ABI-3200-B Tailwheels) |
|
45 |
Bolt, AN |
|
46 |
NUT |
|
47 |

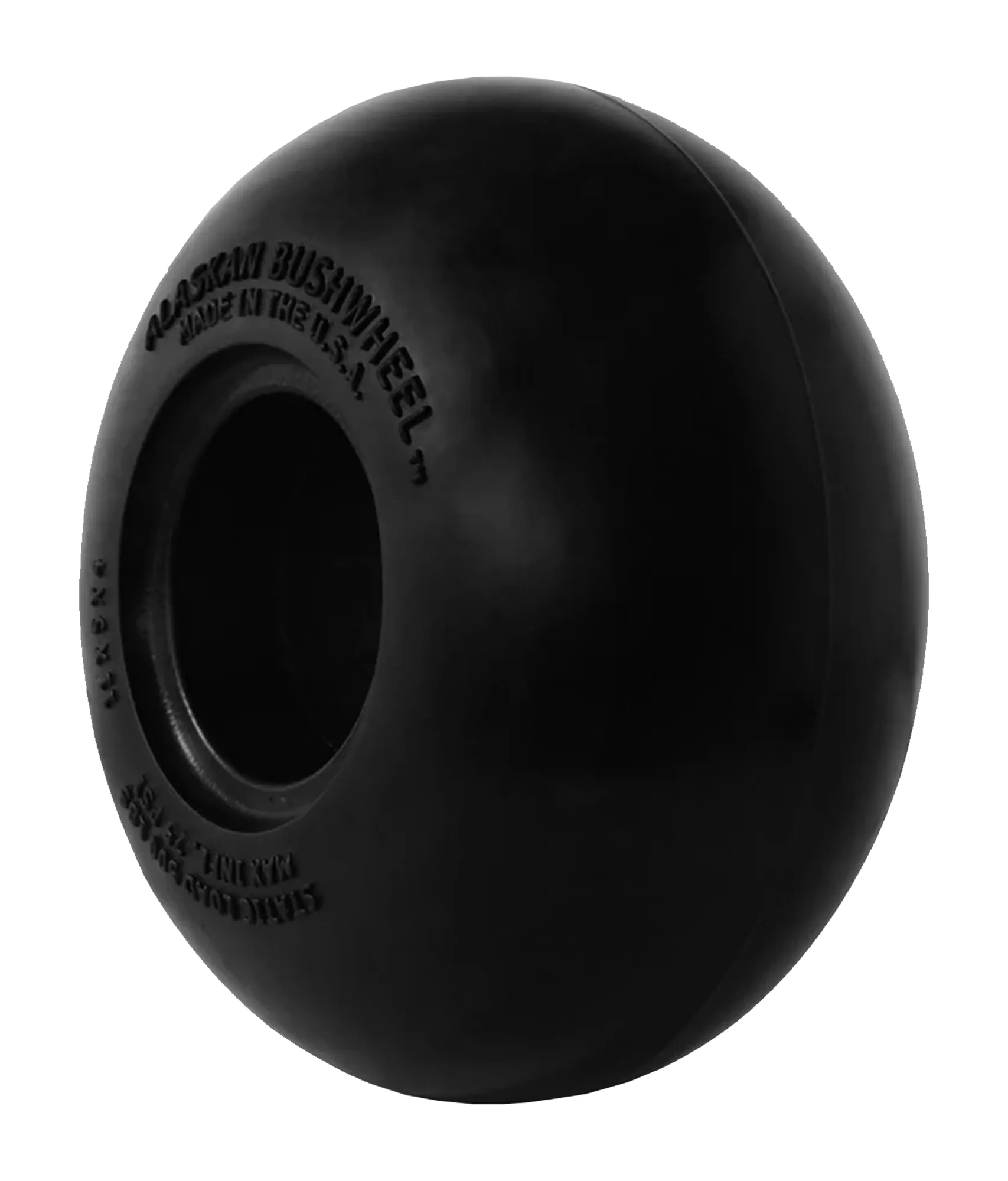

Baby Bushwheel Tire |
Warranty Policy: Warranty protection, when offered, will vary between manufacturers and products lines. Please contact customer support for any warranty claims.
