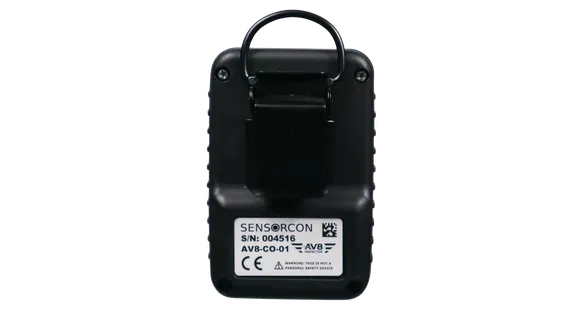

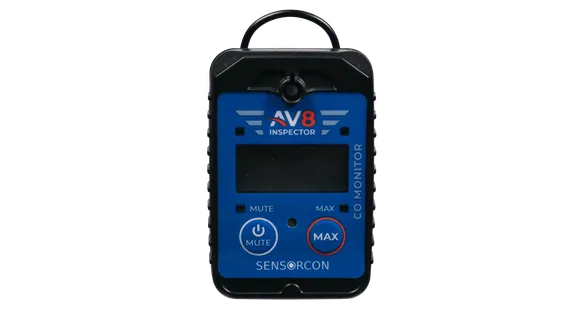

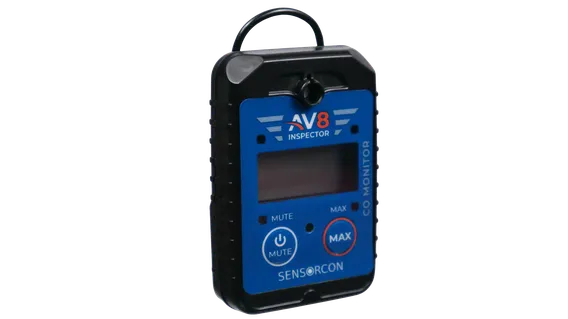

Sensorcon AV8 Inspector Series

Portable Carbon Monoxide Monitor for Aviation

Advanced sensor technology allows for accurate readings of carbon monoxide concentrations before it becomes a problem.

• Steel alligator clip with lanyard loop

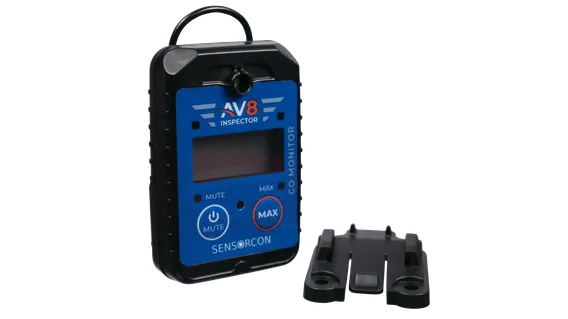

• Removable mount

In aviation, CO is commonly produced by equipment such as piston-driven aircraft, ground servicing equipment, and airside vehicles. Turbine engine aircraft exhaust and auxiliary power unit (APU) exhaust can also contribute to the accumulation of unsafe levels of CO. Being aware of the potential for carbon monoxide (CO) exposure and poisoning is crucial for eliminating safety hazards and preventing accidents.

The AV8 Inspector’s advanced sensor technology allows for accurate readings of carbon monoxide concentrations before it becomes a problem.

Specifications:

• Measuring Range: 0-550ppm
• Resolution: 1ppm
• Accuracy: +/- 10% of reading at ambient conditions (0-500 ppm)
• Response time: (T90): <20 seconds
• Size: ~3.2" x 2.2" x 0.9"
• Unit Weight: 4 ounces
• Battery Life: >2 years (depending on alarm conditions)
• Battery Type: Panasonic CR123A
• Alarm setpoints: 35 ppm low, 2 - ppm high
• Alarm types: Visual LCD/LED, Audible Buzzer (80-85dB), and Vibrate Mode (vibrate in AV8 Inspector Pro model only)
• Temperature Range: -4 to +122°F (-20 to +50°C)
• Sensor Type: electrochemical

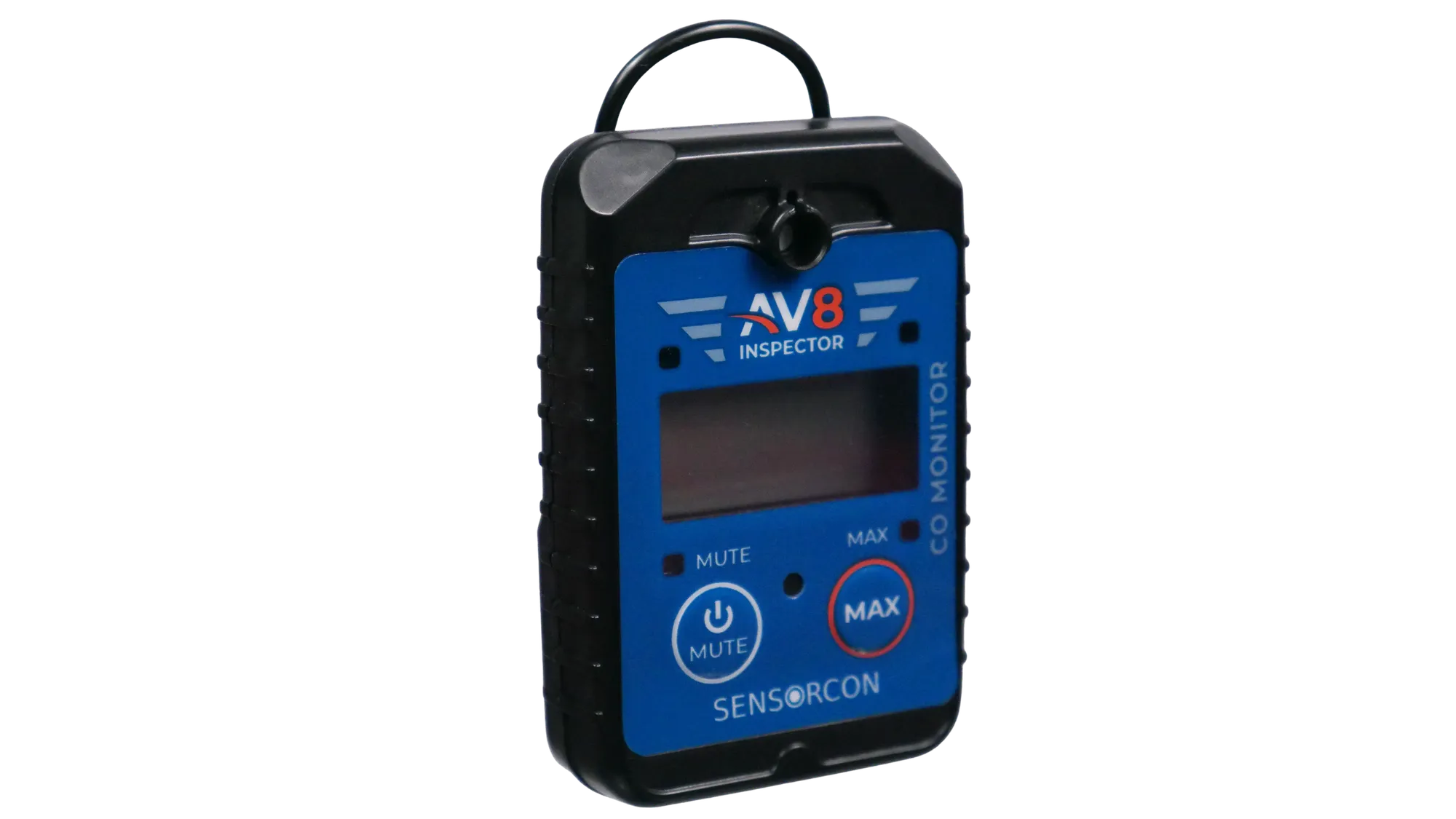

	AV8 INSPECTOR AV8-CO-01	AV8 INSPECTOR PRO AV8-CO-03
2-Year Warranty
Water-resistant
Shock-resistant
Preset Alarms
Visual Alarm
Audio Alarm
Vibrating Alarm
Alarm Adjust
24 Hour TWA
