Door Hinges and Pins
Products in "Door Hinges and Pins"
| Images | Part # | Description | Retail Price | Your Price | Stock |
|---|---|---|---|---|---|
|
7205-1.63D |
PIN, Hinge, Upper RH Cabin Door, 1.63"
Free Shipping on Orders over $500 |
$33.95 | $27.16 |
|
|
7205-1.63U |
PIN, Hinge, Upper LH Cabin Door, 1.63"
Free Shipping on Orders over $500 |
$74.65 | $27.16 |
|
|
7205-2.00U |
PIN, Hinge, Cabin Door, 2.00"
Free Shipping on Orders over $500 |
$74.65 | $27.16 |
|
|
AF2617015-17 |
HINGE, Door
Free Shipping on Orders over $500 |
$1312.91 | $709.68 |
|
|
AF2617015-17B |
HINGE, Door, Bushed
Free Shipping on Orders over $500 |
$1458.80 | $788.54 |
|
|
AF2617015-18 |
HINGE, Door
Free Shipping on Orders over $500 |
$1473.08 | $796.26 |
|
|
AF2617015-18B |
HINGE, Door, Bushed
Free Shipping on Orders over $500 |
$1636.75 | $884.73 |
|
|
AF2617015-19 |
HINGE, Door
Free Shipping on Orders over $500 |
$1196.95 | $647.00 |
|
|
AF2617015-19B |
HINGE, Door, Bushed
Free Shipping on Orders over $500 |
$1329.95 | $718.89 |
|
|
AF2617015-20 |
HINGE, Door
Free Shipping on Orders over $500 |
$1607.06 | $868.68 |
|
|
AF2617015-20B |
HINGE, Door, Bushed
Free Shipping on Orders over $500 |
$1928.44 | $1042.40 |
|
|
AF2617015-21 |
HINGE, Door
Free Shipping on Orders over $500 |
$1480.33 | $800.18 |
|
|
AF2617015-21B |
HINGE, Door, Bushed
Free Shipping on Orders over $500 |
$1644.84 | $889.10 |
|
|
AF2617015-22 |
HINGE, Door
Free Shipping on Orders over $500 |
$1250.14 | $675.75 |
|
|
AF2617015-22B |
HINGE, Door, Bushed
Free Shipping on Orders over $500 |
$1389.05 | $750.84 |
|
|
AF2617015-23 |
HINGE, Door
Free Shipping on Orders over $500 |
$1355.64 | $732.78 |
|
|
AF2617015-23B |
HINGE, Door, Bushed
Free Shipping on Orders over $500 |
$1506.25 | $814.19 |
|
|
AF2617015-24 |
HINGE, Door
Free Shipping on Orders over $500 |
$1270.93 | $686.99 |
|
|
AF2617015-24B |
HINGE, Door, Bushed
Free Shipping on Orders over $500 |
$1412.14 | $763.32 |
|
|
AF2617015-025 |
BUSHING, Hinge, Short
Free Shipping on Orders over $500 |
$37.56 | $20.30 |
|

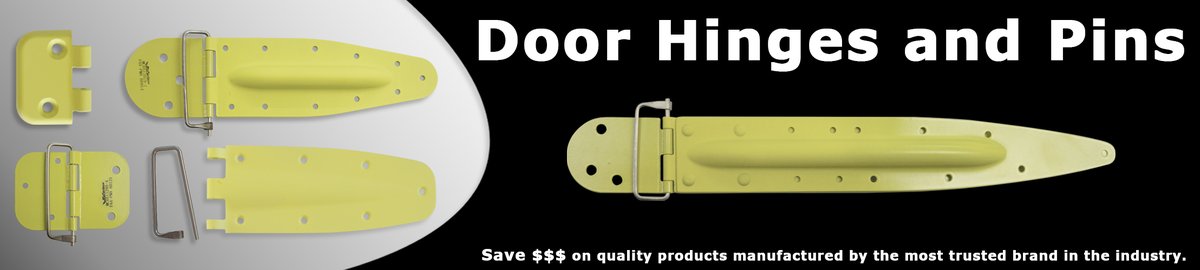

Cabin Door Hinges for Cessna Aircraft
Cessna 170, 172, and 175 Series Aircraft
Straight or bent hinges available — check your aircraft to order the correct style
  |
 |
Improved McFarlane design
- FAA-PMA approved welded design
- Thicker alloy steel
- Heat-treated for extra strength and wear resistance
- Precision pin holes for longer life
- Pre-drilled and epoxy primed
- Catalog Eligibility
Cabin Door Hinge Pins
Don't trust those old brass pins!
- Fast door removal — makes cabin maintenance easier!
- FAA-PMA approved design 5x stronger with stainless steel
- Easy to inspect
- Secure safety pin design
- Convenient kit available: Kit P/N CDHP-KT-1 contains four hinge pins
|
Bent or Straight Hinges - Only from McFarlane! Ensure the right fit for your Cessna! Cessna legacy airplanes, built prior to 1979, feature a door post skin that angles inward (toward the front edge of the door). Aircraft with this bend require a hinge with a 5° bend for correct installation. Later models and new production aircraft do not have this inward angle and use a straight hinge. McFarlane manufactures both bent and straight hinges. We HIGHLY recommend verifying your door hinges before ordering. When in the field, replicating the 5° bend from a straight hinge is very difficult and rarely correct. Let us take away the worry and provide you with the correct hinges today! Please note that McFarlane does not have exact serial number information as to when the hinges went from bent to straight. |
| Maintenance Tip! The Cessna doors have tremendous leverage on the forward door seals. Door hinge and hinge pins can easily be over stressed and fail if incorrect door seals are installed. Always use approved door seals that are designed for your aircraft. Maintenance Tip for Door Hinge Replacement: To install new hinges, temporarily attach the replacement hinges to the door using temporary fasteners. Install the door and hinge pins. Verify the door alignment with the door opening. The leading edge of the door should be approximately flush with the adjacent door post skin. Minor bends can be made to the upper hinges to perfect the door fit. Please reference the ICA. |
Cabin & Cargo Door Hinges for Cessna Aircraft
Cessna 180, 185, 205, 206, 207, and 210 Series Aircraft
Improved McFarlane design
- FAA-PMA approved with improved machined design
- Better fit and form than competitor's forged hinges
- Available drilled or undrilled
- Save $$$
- Catalog Eligibility
Quick Removal Clevis Pin and Cotter Key
New and improved design replaces staked-in hinge pin!
Cessna 180, 182, 185, 205, 206, 207, and 210 Series
- FAA-PMA approved design replaced staked-in Cessna hinge pin
- Easy door removal for maintenance
- Corrosion resistant
Door Hinges for Cessna Caravan
Door hinges have bushings for longer wear!
As the original equipment hinge halves wear and the aircraft door starts to sag, Cessna Service Bulletin CAB96-2 allows a one time repair through the use of an oversize door hinge pin. When the hinge again becomes worn and the door sags, the hinge halves must be replaced and an original size hinge pin re-installed.
- FAA-PMA direct replacements
- Fits all Cessna 208/208B aircraft
- Anodized for corrosion resistance
- Precision fit
- Available with or without bushing
- Replaceable bushings allow extended service life!
 AF2617015-18 |
 AF2617015-19 |
For ordering information go to Caravan Door Hinges.
Coming Soon! Early Cessna Door Hinges - 120, 140, and 150 Series.
