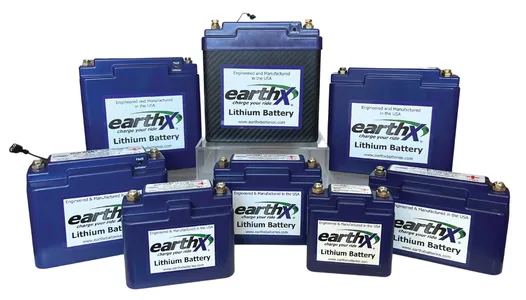

EarthX Batteries
EarthX Batteries use Lithium Iron Phosphate chemistry to deliver powerful starting energy. This chemistry provides the highest, most robust performance and safest power on the market. All EarthX Batteries come standard with a BMS (battery management system) for performance, safety, and longevity.
|
FAA-TSO EarthX Batteries
|
 |
| Aircraft | Battery Only | Battery + Installation Kit + STC |
| Aviat A-1 Series | ETX900-TSO | ETX900-TSO-AVIAT-KIT BUNDLE |
| Cessna 120, 140, 150-150C | ETX900-TSO | ETX900-TSO-25-KIT BUNDLE |
| Cessna P172D | ETX900-TSO | ETX900-TSO-25-KIT BUNDLE |
| Cessna 175-175C | ETX900-TSO | ETX900-TSO-25-KIT BUNDLE |
| Cessna 177A, B, RG | ETX900-TSO | ETX900-TSO-35-KIT BUNDLE |
| Cessna 180-180K | ETX900-TSO | ETX900-TSO-35-KIT BUNDLE |
| Cessna 182A-182Q | ETX900-TSO | ETX900-TSO-35-KIT BUNDLE |
| Cessna 185-A185F | ETX900-TSO | ETX900-TSO-35-KIT BUNDLE |
| Mooney M20E-M20K | ETX900-TSO | ETX900-TSO-35-M20-KIT BUNDLE |
| Piper PA28-PA28RT | ETX900-TSO | ETX900-TSO-35-PA-KIT BUNDLE |
| Piper PA18, PA20, PA22, PA24 w/ 35Ah Battery Box | ETX900-TSO | ETX900-TSO-35-PA-KIT BUNDLE |
| Piper PA18, PA20, PA22, PA24 w/ 25Ah Battery Box | ETX900-TSO | ETX900-TSO-25-KIT BUNDLE |
|
Experimental EarthX Batteries Benefits:
|
|
|
Part Number
|
Voltage
|
Ah (1C rate)
|
Crank/Amps (PCA/CCA)
|
Weight
|
Dimensions L x W x H
|
Case
|
Notes
|
| ETX104 (backup battery) |
13.2
|
4.0
|
N/A
|
1.3 lbs
|
4.5" x 2.6" x 3.7"
|
A
|
Back up battery provides power to your critical loads with built in current limiting, works with any engine and alternator size. |
| ETX680 |
13.2
|
12.4
|
680/320
|
4.1 lbs
|
6.5" x 3.0" x 6.6"
|
E
|
400Ci engine size or less, 60 amp alternator or less |
| ETX680C |
13.2
|
12.4
|
680/320
|
3.9 lbs
|
5.9" x 3.4" x 4.5"
|
C
|
400Ci engine size or less, 60 amp alternator or less |
| ETX900 |
13.2
|
15.6
|
840/400
|
4.9 lbs
|
6.5" x 3.0" x 6.6"
|
E
|
550Ci engine size or less; 80amp alternator or less |
| ETX900-VNT |
13.2
|
15.6
|
840/400
|
5.4 lbs
|
6.5" x 3.0" x 6.6"
|
E
|
550Ci engine size or less; 80amp alternator or less. Includes built in thermal runaway containment and venting for in cabin installation |
| ETX1200 |
13.2
|
20.0
|
1200/600
|
5.6 lbs
|
6.5" x 3.0" x 6.6"
|
E
|
550Ci engine size or larger; 120amp alternator or less |
| ETX1200-24-VNT |
26.4
|
20.0
|
1200/650
|
12.4 lbs
|
7.3" x 5.8" x 6.6"
|
Turbine start battery; 300amp alternator or less | |
| ETX1600 |
13.2
|
32.0
|
1600/760
|
8.9 lbs
|
6.5" x 3.0" x 6.6"
|
E
|
550Ci engine or larger; 160amp alternator or less |
| ETX680-24-VNT |
26.4
|
11.7
|
850/400
|
7.2 lbs
|
6.5" x 5.1" x 6.6"
|
U
|
Designed for turbine engines (parallel configuration) and piston engines up to 550Ci. 70 amp alternator or less |
| ETX900-24 |
26.4
|
15.6
|
840/400
|
8.9 lbs
|
6.5" x 5.1" x 6.6"
|
U
|
900hp turbine engines or 550Ci piston engines; 80 amp **altnerator or less |
For ordering information, go to Batteries and Accessories.
