Seat/Cargo Tie Down Quick Disconnect Adapters
- Use with MS21234-MS21235/AN7516 style seat attach or cargo studs (see P/N 34003-59)
- Spring loaded ring locks jaws around stud, and spring loaded lock pin prevents accidental release.

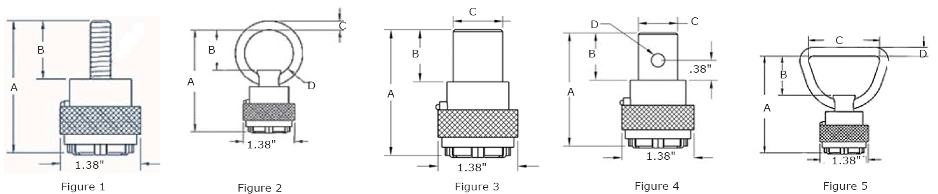

| P/N | Description | Figure |
A |
B |
C |
D |
0 deg Vertical Breaking Strength lbs. | 90 deg Pull Angle Breaking Strength lbs. | ||
| 33115 | 12-Jaw, Threaded Stud, 1" x 3/8-24 UNF |
1 |
2.26" | 1.00" |
5475 |
2300 |
||||
| 33116 | 12-Jaw, Threaded Stud, 3/4" x 3/8-24 UNF |
1 |
2.01" | 0.75" |
5475 |
2300 |
||||
| 32326 | 12-Jaw, Ring |
2 |
2.85" | 1.13" | 0.25" | 1.31" |
5475 |
2300 |
||
| 32334 | 12-Jaw, Chair Leg Stud, 0.85" |
3 |
2.16" | 0.90" | 0.85" |
N/A |
2300 |
|||
| 32336 * | 12-Jaw, Chair Leg Stud, 0.88" w/ 1/4" Hole |
4 |
2.16" | 0.90" | 0.88" | 0.25" |
5475 |
2300 |
||
| 32340 ** | 12-Jaw, Chair Leg Stud, 0.85" w/ 1/4" Hole |
4 |
2.16" | 0.90" | 0.85" | 0.25" |
5475 |
2300 |
||
| 32343 | 12-Jaw, D-Ring |
5 |
2.82" | 1.10" | 2.01" | 0.25" |
5475 |
2300 |
||
| 32367 *** | 12-Jaw, Chair Leg Stud, 0.75" w/ 3/8" Hole |
4 |
2.32" | 1.06" | 0.75" | 0.25" |
5475 |
2300 |
||
| * Replaces MS22034-2 ** Replaces MS22034-1 *** Replaces MS22034-3 |
||||||||||
 P/N 33115
|
 P/N 33116
|
 P/N 32326
|
 P/N 32334
|
 P/N 32336
|
 P/N 32340
|
 P/N 32343
|
 P/N 32367
|
